CRT SS9900 Version-4 *EXPECT END NOVEMBER

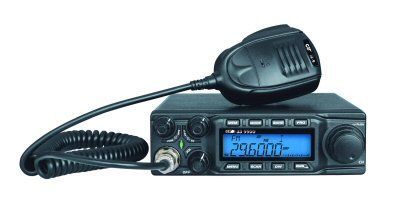

Print pageTransceiver 10M Mobile, AM/FM/USB/LSB.
Frequency Range (1) 28.000 - 29.700 MHz, (2) 24.885 - 30.105 MHz
Power AM 15 Watt, FM 45 Watt, SSB 60 Watt
Electret Microphone, 6-Pin, Special Wiring.
Use SS9900PC to program SS9900 by computer.
| Price End user EU | € 274,50 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 226,86 excl. VAT/BTW/TVA |
| Stock |
 Out of stock |
| Avera p/n | CRT SS9900 |
| Brand | CRT |
| Type | CRT SS9900 Version-4 *EXPECT END NOVEMBER |
| Barcode | 3140650006469 |
| Category | CRT Products |
| Sub Category | CRT CB |
| Packing Length (cm) | 36 |
| Packing Width (cm) | 19 |
| Packing Heigth (cm) | 6 |
| Packing Weight in grams | 2095 |
| Packing Type | Box |
| Packing QTY in Master Carton | 5 |
| Statistical Number | 85256000 |
| Origin | China |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• New on Version 4: On version 4 you have also band K (24.885 - 25.365 MHz) and band L (25.375 - 25.605 MHz)
- Modes: AM/FM/USB/LSB.
- Power: AM 15 Watts with Modulation, FM 45 Watts, SSB 60 Watts.
- Output Power Adjustable on AM/FM/SSB.
- CTCSS and DCS encoder/decoder (included original) 38 CTCSS-104DCS.
- Frequency Shift (REP function) SPLIT Adjustable from 100Hz to 5 MHz.
- Steps 100 Hz, 1 KHz, 10 KHz, 100 KHz and 1 MHz.
- VFO in Frequency mode continued from 28.000 to 29.700 MHz (with step selected).
- FIN (Fine Tune, RX only / TX only / Both). Adjustable with clarifier, range ± 1.5 KHz.
- 6 Memories Programmable.
- Automatic Squelch (AM/FM) ASQ.
- Power / Signal Strength / SWR Indication.
- Numeric Indication for SWR Value.
- Power Supply DC Displaying.
- Dual Watch.
- Scan Mode.
- Roger Beep.
- Adjustable echo.
- Public Address.
- Multi-Color Display (7 Colors ).
- Backlight Key.
- Key Lock.
- Hi Cut (on/off).
- Noise Blanker (on/off).
- Echo (on/off).
- +10 KHz (on/off).
- Roger Beep (off, 1-5).
- Microphone Gain (1-36).
- NOG (Monitor Volume, 1-32).
- TOT (Time Out Timer, Off / Adjustable up to 600 Seconds).
- TSR (High SWR Protection, On/Off).
- TDC (High Voltage Protection, On/Off).
- SCM (Scan Mode, SQ/Time).
- Programmable by Computer (mini USB on back side).
- Reset.
- Size: 157 Large x 48 Height x 246 Depth.
- Weight : 2.1 Kg.
PLEASE NOTE:
• Software for Version-4 is only to be used with Version-4 model radio
PACKING INCLUDES:
1 Pc of SS9900
1 Pc of Microphone
1 Pc of Install Bracket
1 Pc of Microphone Hanger
1 Pc of Cable
2 Pcs of Screws
2 Pcs of Pads
2 Pcs of Adjusting Screws
1 Pc of Non-Slip Mat
1 Pc of Fuse (10A 250V)
1 Pc of User Manual in English
1 Pc of User Manual in French
WIRING OF MIC CABLE:
PIN 1 = Modulation
PIN 2 = UP/DW
PIN 3 = PTT
PIN 4 = NC
PIN 5 = Shield
PIN 6 = NC
Comes close to 6-Pin Uniden/President Wiring, UP will function, DOWN will NOT function.
AVAILABLE ACCESSORIES:
• SS9900PC = PC Cable Set.
• DIN 0035V2 = DIN Mounting Kit
AVAILABLE SPARE PARTS:
• CHSEL 0016 = Channel selector potmeter
• DISPLAY 0032 = Display window
• DISPLAY 0034 = LCD Display
• FQP13N10 = RF Driver
• KNOB 0060 = KNOB for Channel Selector
• MICRO SS9900 = Original Replacement Microphone
• PCB 0021 = PCB for CTCSS
• POTM 0104 = Potmeter Squelch / Clarifier
• POWERCORD 1037 = 12V DC Power Cord, including Fuse Holders.
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
SS9900, SS-9900, SS 9900.
