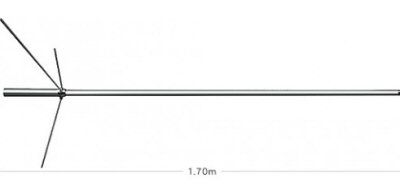

Diamond D777
Print pageAntenna VHF/UHF Base.
Receiving Frequency 120 MHz/300 MHz, Length approx 170 cm.
Connector UHF-Female (SO-230)
| Price End user EU | € 98,00 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 80,99 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | DIAM D777 |
| Brand | Diamond |
| Type | Diamond D777 |
| Barcode | Not Available |
| Category | DIAMOND Products |
| Sub Category | DIAMOND Antennas RX |
| Packing Length (cm) | 163 |
| Packing Width (cm) | 13 |
| Packing Heigth (cm) | 6 |
| Packing Weight in grams | 1190 |
| Packing Type | Bag |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85291095 |
| Origin | Taiwan |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
The D777 Dual-Band fixed station antenna covers both the VHF and UHF Airband Frequencies.
With the extra gain on both bands, it will give you better results than whips or indoor antennas.
The D777 is made of a Fibre Glass construction, is Pre-Tuned and is fully weatherproof.
Packing includes Mast Mounting Brackets.
• Frequencies: 120/300MHz
•Gain:
...3.4dBi 120 MHz
...5.5dBi 300 MHz
• Type:
...5/8 - 120 MHz
...2x5/8 - 300 MHz
• Length: 170 cm
• Radial Length: 52 cm
• Mast Size: 30 - 62 mm
• Connector Socket: UHF-Female (SO-239)
• Wind Velocity: 60 m/sec
• Weight: approx 1Kg
PACKING INCLUDES:
1 Pc of Antenna.
3 Pcs of Radials
1 Pc of Mounting Pipe1 Set if Mounting materials
1 Pc of User Manual in Englisch and Japanese.
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
D777, D 777, D-777.
BARCODE:
493631257005
This product was added to our website (or changed) on Tuesday 1 July 2014.
For quantity pricing please contact our sales desk.
