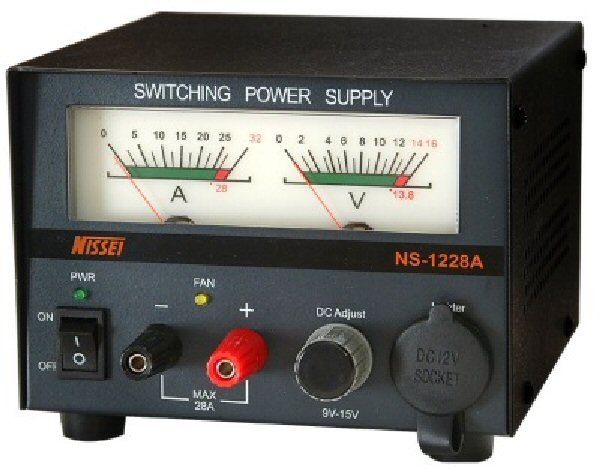

Nissei NS-1228A
Print pagePower Supply, Switch Mode
• Meter for Volt and Ampere
• Input Voltage: 100 - 120 or 220 - 240 VAC
• Input: Power Cord with 2-Pin EU/Schuko
• Output Voltage: Adjustable 9 - 15 VDC or Fixed 13,8 VDC
• Output Current: 25 / 28 Ampere
• Output Front: Binding Post Output Terminals
• Output Front: Cigarette Lighter Socket 12 VDC
| Price End user EU | € 159,00 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 131,41 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | NIS NS1228A |
| Brand | Nissei |
| Type | Nissei NS-1228A |
| Barcode | Not Available |
| Category | NISSEI Products |
| Sub Category | NISSEI Power Supplies |
| Packing Length (cm) | 22 |
| Packing Width (cm) | 19 |
| Packing Heigth (cm) | 12 |
| Packing Weight in grams | 2101 |
| Packing Type | Box |
| Packing QTY in Master Carton | Not Available |
| Statistical Number | 85044095 |
| Origin | Taiwan |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• The NISSEI switching power supplies have been specifically designed for use with transceiver equipment for amateur radio operators who wish to have a power supply unit in the station, clean from a spectral point of view with low coverage.
• All models are protected against short circuits, with maximum current and voltage limitation (up to 16Vdc ±0.5V)
• Double instrument V + A backlit
• 9 - 15Vdc voltage regulation with front high power socket (28 Ampere max) and cigarette lighter socket (7A)
• Silent fan for forced cooling with signaling led
• Protection circuit against short circuits and overvoltages.
PACKING INCLUDES:
1 Pc of Switching Power Supply
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
NisseiNS1228A, NS-1228A, NS 1228A, NS-1228-A, NS1228-A, NS1228A
MASTER CARTON DETAILS:
M/C Dimensions: -- x -- x -- cm
M/C Weight: -,-- Kg
M/C Quantity: -- Pcs
M/C Barcode: -------------
This product was added to our website (or changed) on Thursday 5 September 2019.
For quantity pricing please contact our sales desk.
Although the information and specifications at this internet site are presented in good faith and believed to be correct, Avera-Distributing. makes no representations or warranties as to the completeness or accuracy of the information.
