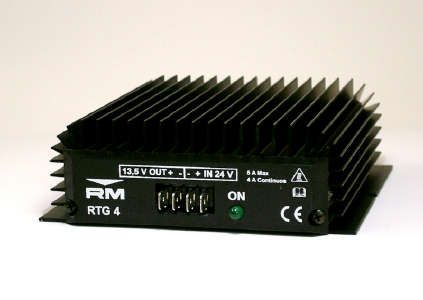

RM RTG4
Print pageInput 24VDC, Output 13.5VDC, 4A/5A.
Switch Mode, Galvanic Insulation
| Price End user EU | € 108,90 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 90,00 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | RM RTG4-24 |
| Brand | RM |
| Type | RM RTG4 |
| Barcode | Not Available |
| Category | RM ITALY Products |
| Sub Category | RM DC-DC Converters |
| Packing Length (cm) | 15 |
| Packing Width (cm) | 13 |
| Packing Heigth (cm) | 5 |
| Packing Weight in grams | 475 |
| Packing Type | Box |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85045000 |
| Origin | Italy |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
Protection against short circuit current, overheating, over output voltage and inversion polarity.
LED inspection of output tension.
Input and output insulated by transformer.
Use appropriate Fast-On connectors to connect V-in and V-out.
A green LED indicates the presence of output tension of 13.5VDC.
The LED off indicates:
A. To high temperature of the aluminium dissipator due to either current absorption or insufficient dissiapation.
When the proper working conditions are reset the device automatically reset providing output tension , lightening the green On-LED
OR
B. Decrease of V-in input tension (battery no longer efficient to grant the continuous supply of the connected units).
During protection the output is not working and LED is off.
Always make sure the reducer is placed in such a way to support the out flow of the heat.
24 months warranty except final transistors, zener diodes and estetical parts.
• Fuse 1x 4A
PACKING INCLUDES:
1 Pc of RTG4-24
AVAILABLE ACCESSORIES:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
RTG4-24, RTG4 24
BARCODE:
Not available on the product
This product was added to our website (or changed) on Wednesday 8 August 2012.
For quantity pricing please contact our sales desk.
