Sirio CX425
Print page

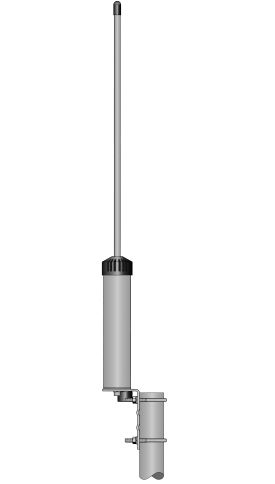

Antenna UHF Base, 3/4 Wave Coax J-Pole, 425 - 440 MHz, 200 Watts.
| Price End user EU | € 49,01 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 40,50 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | SI 2102601.00 |
| Brand | Sirio |
| Type | Sirio CX425 |
| Barcode | 8056182113184 |
| Category | SIRIO Products |
| Sub Category | Antennas: HF/VHF/UHF Base |
| Packing Length (cm) | 69 |
| Packing Width (cm) | 10 |
| Packing Heigth (cm) | 6 |
| Packing Weight in grams | 575 |
| Packing Type | Bag |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85291095 |
| Origin | Italy |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Type = 3/4 Wave Coax J-Pole
• Impedance = 50 Ohms Unbalanced
• Radiation (H-Plane) = 360 degrees Omnidirectional
• Radiation (E-Plane) = Beamwidth at -3 dB = 60 degrees
• Polarization = Vertical
• Gain = 2 dBd - 4.15 dBi
• Bandwidth at SWR 2:1 = 30.7 MHz
• SWR at res.freq = Max Power = 200 Watts
• Feed System / Position = Gamma Match / Base
• Connector = N - Female
• Wind Load / Resistance = 25 N at 150 Km/h / 180 Km/h
• Height = 603 mm
• Weight = approx 450 grams
• Mounting Mast = 35 - 42 mm
PACKING INCLUDES:
1 Pc of CX 425
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
CX 425, CX-425, CX425, 2102601.00.
BARCODE:
Not available on the product
This product was added to our website (or changed) on Friday 5 October 2012.
For quantity pricing please contact our sales desk.
Although the information and specifications at this internet site are presented in good faith and believed to be correct, Avera B.V. makes no representations or warranties as to the completeness or accuracy of the information.
BELOW IN RED IS A LINK TO SERVICEDOCS.COM
Click the link for more detailed information on this product.
