Sirio CX440
Print page

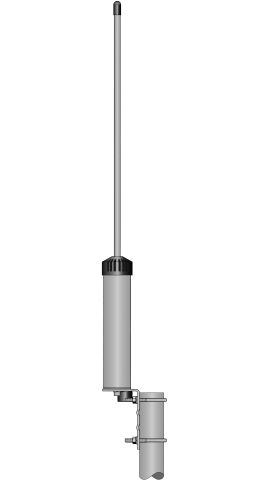

Antenna UHF Base, 3/4 Wave Coax J-Pole, 440 - 455 MHz, 200 Watts.
| Price End user EU | € 49,01 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 40,50 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | SI 2102701.00 |
| Brand | Sirio |
| Type | Sirio CX440 |
| Barcode | 8056182113191 |
| Category | SIRIO Products |
| Sub Category | SIRIO UHF Base Antennas |
| Packing Length (cm) | 69 |
| Packing Width (cm) | 10 |
| Packing Heigth (cm) | 6 |
| Packing Weight in grams | 570 |
| Packing Type | Bag |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85291095 |
| Origin | Italy |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Type = 3/4 Wave Coax J-Pole
• Impedance = 50 Ohms Unbalanced
• Radiation (H-Plane) = 360 degrees Omnidirectional
• Radiation (E-Plane) = Beamwidth at -3 dB = 60 degrees
• Polarization = Vertical
• Gain = 2 dBd - 4.15 dBi
• Bandwidth at SWR 2:1 = 33.5 MHz
• SWR at res.freq = Max Power = 200 Watts
• Feed System / Position = Gamma Match / Base
• Connector = N - Female
• Wind Load / Resistance = 25 N at 150 Km/h / 180 Km/h
• Height = 588 mm
• Weight = approx 450 grams
• Mounting Mast = 35 - 42 mm
PACKING INCLUDES:
1 Pc of CX440
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
CX440, CX-440, CX 440, 2102701.00.
BARCODE:
Not available on the product
This product was added to our website (or changed) on Friday 5 October 2012.
For quantity pricing please contact our sales desk.
