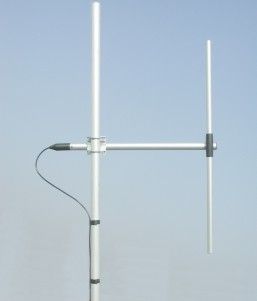

Sirio WD-155N
Print pageAntenna VHF Base, 155 - 175 MHz, Directional, Half Wave Dipole, 73 x 84cm, Gain 4dBi, Max 200 Watts (CW), Connector N-Female
| Price End user EU | € 106,50 incl. VAT/BTW/TVA |
|---|---|
| Price End user Non EU | € 88,02 excl. VAT/BTW/TVA |
| Stock |
 In stock |
| Avera p/n | SI 2113301155 |
| Brand | Sirio |
| Type | Sirio WD-155N |
| Barcode | 8056182112637 |
| Category | SIRIO Products |
| Sub Category | SIRIO VHF Base Antennas |
| Packing Length (cm) | 100 |
| Packing Width (cm) | 12 |
| Packing Heigth (cm) | 6 |
| Packing Weight in grams | 1405 |
| Packing Type | Bag |
| Packing QTY in Master Carton | 10 |
| Statistical Number | 85291095 |
| Origin | Italy |
| More information | Servicedocs.com |
FEATURES, FUNCTIONS AND SPECIFICATIONS:
Features:
• Base station antenna, Directional
• Wide band, Low-gain
• Highly symmetrical radiation pattern in both planes (E and H)
• Protection from static discharges DC-ground
• Made of anodized aluminium alloy
• Stacked and bayed array for more gain
P/N 2113301/140 WD 140-N
P/N 2113301/155 WD 155-N
Electrical Data:
• Type: Half wave dipole
• Frequency range:
WD 140-N: 140-160 MHz
WD 155-N: 155-175 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): beamwidth at -3 dB =
WD 140-N: 245° at center freq.
WD 155-N: 245° at center freq.
• Radiation (E-plane): beamwidth at -3 dB =
WD 140-N: 80° at center freq.
WD 155-N: 85° at center freq.
• Radiation angle: 0°
• Front to back ratio: ≥ 5 dB
• Polarization: linear vertical
• Gain: 4 dBi
• SWR in bandwidth: ≤ 1.5:1
• Max. power: 200 Watts (CW) at 30° C
• Feed system / position: RG303 teflon coax with balun / inside boom
• Connector: N-female with rubber protection cap
Mechanical Data:
• Materials: Anodized 6063-T5 Aluminium, EPDM rubber, thermoplastic UV stabilized, Chromed brass
• Wind load / resistance: 77 N at 150 Km/h / 200 Km/h
• Wind surface: 0.059 m²
• Dimensions (approx.):
WD 140-N: 730 x 915 mm
WD 155-N: 730 x 835 mm
• Weight (approx.):
WD 140-N: 1390 gr
WD 155-N: 1340 gr
• Tourning radius: 600 mm
• Operating temperature: -40° C to +60° C
• Mounting mast: Ø 35-52 mm
PACKING INCLUDES:
1 Pc of WD155-N
AVAILABLE ACCESSORIES:
AVAILABLE SPARE PARTS:
• FT-6 = Fixing Bracket
LINK(S) TO VIDEO OF THIS PRODUCT:
Links to video’s to be published as soon as possible.
Feel free to send link suggestions.
ADDITIONAL SEARCH OPTIONS:
SirioWD155N, WD155-N, WD155N, WD155 N.
BARCODE:
Not available on the product
This product was added to our website (or changed) on Monday 15 October 2012.
For quantity pricing please contact our sales desk.
